Name: CNP178 XTOOL M821 Mercedes Benz All Key Lost Communication Adapter
Brand: My shop cnautokeys.com
SKU: CNP178
Price: 89.00 USD
Availability: InStock

Specifications

The M821 Mercedes-Benz All Keys Lost Communication Adapter is used for programming Mercedes-Benz EIS modules in an all-keys-lost situation. Get the job done in half the time, in addition to reducing the amount of times you'll need to insert and remove the key emulator!

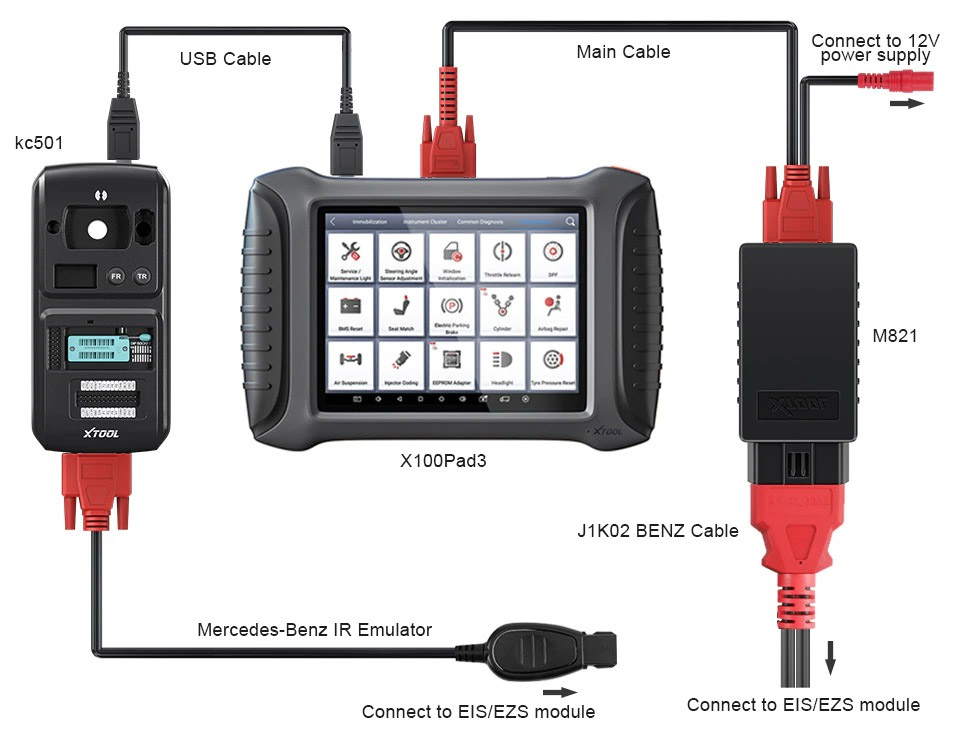

When the M821 Mercedes-Benz Adapter and the KC501 IR reader/writer are combined with your AutoProPAD G2 or AutoProPAD G2 Turbo, you can easily extract the EZS/ EIS key password which will allow you to program Infra-Red keys to DAS2/ DAS3 (FBS2/ FBS3).

M821 Adapter Description

OBD-16 port: Used to connect to J1Z02_BENZ communication cable or connect to EIS/EZS modules via DuPont cables.
Caution: Don't connect to the OBD port on the car directly.
Status Light: This shows the power status of the adapter. When the red lights are on, that indicates the power is on.
Comm Light: This shows the communication status of the adapter. When the blue lights are on, that indicates the adapter is communicating with the tablet.
DB15 port: Used to connect to the main cable of XTOOL tablets.
Note: Before connecting to M821 Adapter, please disconnect the OBD2-16 connector from the main cable.

Supported EIS Modules:
W164 (Old)
W166
W204
W212 (new)
W164 (new)
W216
W221
W211

Accessories Needed:
Xtool KC501

ELS No.	Chassis No.	Models	Year
W164	W164	GL-Class	2006-2011
	W164	ML-Class	2006-2011
	W251	R-Class	2009+
W166	W166	GL-Class	2011-2015
W166	W166	ML-Class	2011-2015
W204	W204	C-Class	2007-2009
W204	W204	GLK-Class	2009
W211	W211	E-Class	2003-2009
	W171	SLK-Class	2004-2010
	W219	CLS-Class	2006-2010
W212 (NEW)	W212	E-Class	2010-2014
	W204	GLK-Class	2103-2015
	W251	R-Class	2012
	W172	SLK-Class	2012-2014
W216	W221	S-Class	2008-2012
W221	W221	S-Class	2008-2012

Package List

M821 Mercedes-Benz AKL Adapter
J1K02_BENZ Wiring Harness
M821 Quick Guide
